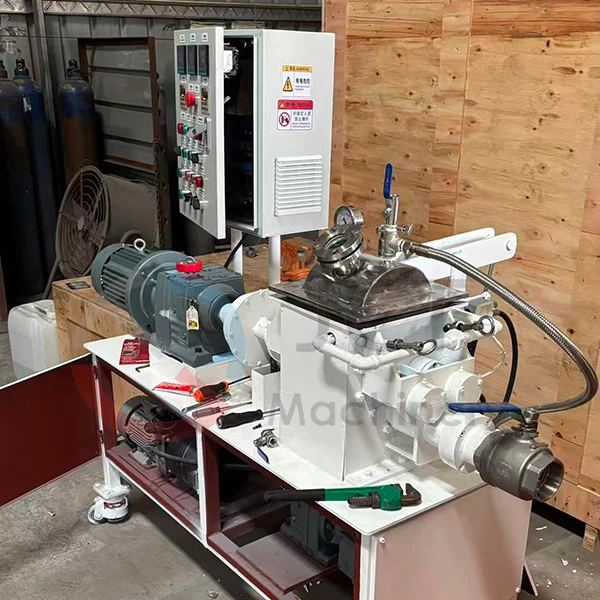

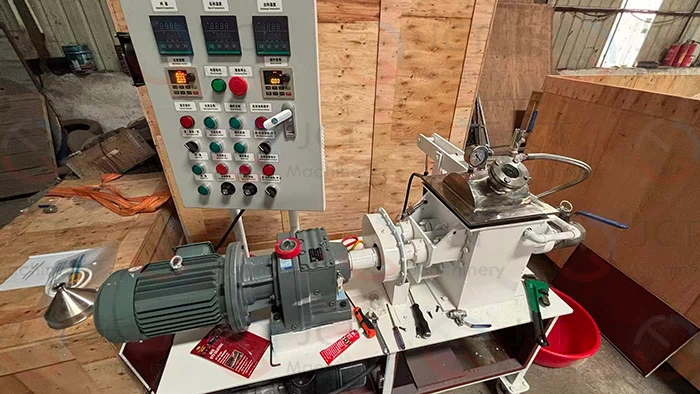

Compared to hydraulic tilting discharge type, 5L screw discharge sigma mixer overcome a common industry challenge: the tendency for high-viscosity materials to adhere to vessel walls and the difficulty of achieving complete discharge. By utilizing screw reversal for mixing and forward rotation for extrusion, these machines not only ensure 100% efficient material discharge but also enable direct extrusion molding (e.g., into strands or pellets) when paired with a die, thereby significantly enhancing laboratory efficiency and testing accuracy.
| Cylinder Capacity | Full capacity ~ 6L |
| Discharge Method | Bottom screw discharge |
| Motor Power | 1.5KW - 6-pole standard motor |
| Gear Reducer | Helical gear reducer |

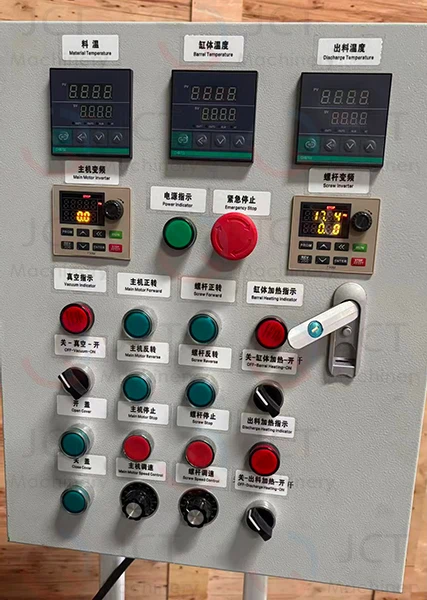

| Inverter | 1.5KW frequency inverter |
| Cylinder Body | W-shaped, inner cylinder wall thickness 4mm, material SUS304 stainless steel, with a 5mm heating jacket, the jacket has multiple sets of flow guide plates, material carbon steel, with material and hot oil temperature measurement |
| Wall Panels | 12mm Q235 carbon steel + 3mm SUS304 stainless steel plate, integrally bored shaft hole with the cylinder body to ensure concentricity of the stirring paddle |

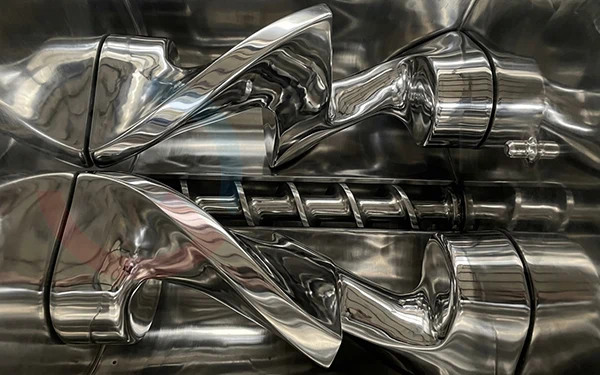

| Stirring Shaft | Σ-shaped, optimal streamlined structure. The impeller body is made of cast steel, rough-machined, then encased in SUS304 stainless steel, and finally precision-machined. The shaft seal is ground, and the impeller surface is polished to ensure a smooth finish |
| Shaft Seal | Packaging seal structure, using F4 packing to ensure no black particles from packing wear enter the cylinder, guaranteeing material purity |
| Cylinder Head | Equipped with one feed, vacuum, and vent pipe, made of SUS304 stainless steel |
| Hydraulic Cover Opening | Opening angle ≥75° |
| Heating Method | Jacketed electric heating |
| Vacuum degree | ≥-0.095MPa |
| Heating temperature | Room temperature - 200°C (can be cooled) |
Service Commitment: We provide manufacturer warranties, laboratory sample testing or on-site trial mixing services, and professional technical support.
