1. Powerful kneading for high-viscosity materials
Features a dual ∑ (Z-blade) design that delivers intense shear and extrusion forces, making it ideal for high-viscosity feed formulations.
2. High mixing uniformity
Ensures the uniform distribution of various nutritional components, thereby enhancing the consistency and quality of the feed.
3. Food-grade material construction
All parts in contact with the materials are constructed from stainless steel (304/316), fully complying with the hygiene standards of the food and feed industries.
4. Jacketed temperature control system
Supports both heating and cooling operations, ensuring process stability and optimal temperature control during material processing.
5. Convenient discharge
Optional discharge methods: hydraulic tilting discharge/ screw discharge.
Effectively resolves the challenge of discharging high-viscosity feed materials.
6. Easy-to-clean structure
Features smooth internal walls with a mirror-polished finish, minimizing material residue and preventing cross-contamination.
| Equipment colume | 5-10000L |
| Working volume | 60%-70% |
| Gear reducer | Hardened gear reducer, 1 set |
| Inverter | Heavy-duty inverter, 1 set |
| Shaft drive | These two stirring shafts are driven by a double-gear mechanism with a gear tank |
| Heating medium | External circulation heating is achieved through hot oil circulation |
| Cylinder structure | W-shaped cylinder body, blades are polished with high precision to prevent sticking and provide excellent shearing and kneading effects |
| Inner cylinder | 16mm SS304 stainless steel plate, high-precision polished |
| Jacket | 14mm Q235-B carbon steel plate with a diversion reinforcement plate |
| Side plates | 35mm Q235-B carbon steel plate + 6mm SS304 lining plate, high-precision polished |

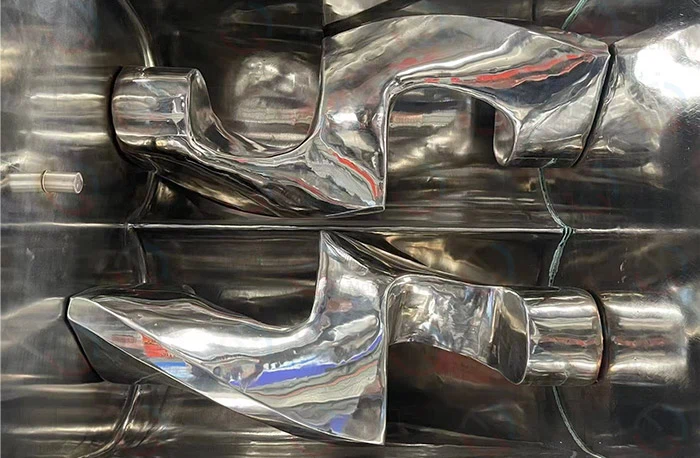

| Agitator blades | Made of integral cast steel, coated with 6mm thick SS304 stainless steel, and finely polished for high precision. 2 sets |
| Clearance between blades and cylinder | 3-6mm |
| Clearance between blades and side plates | 3-4mm |
| Mixing Speed | Front Blade: Rear Blade = 0~48/32 RPM, Variable Frequency Control |
| Lid (Open) | Hydraulic lid opening device, equipped with a hydraulic system and hydraulic station |

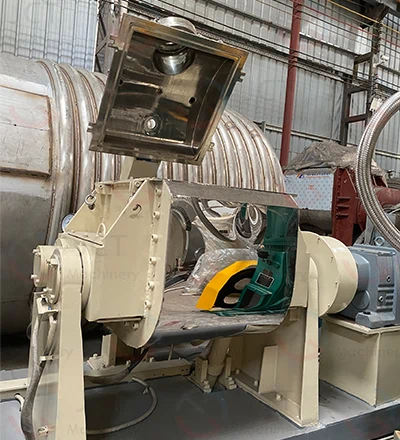

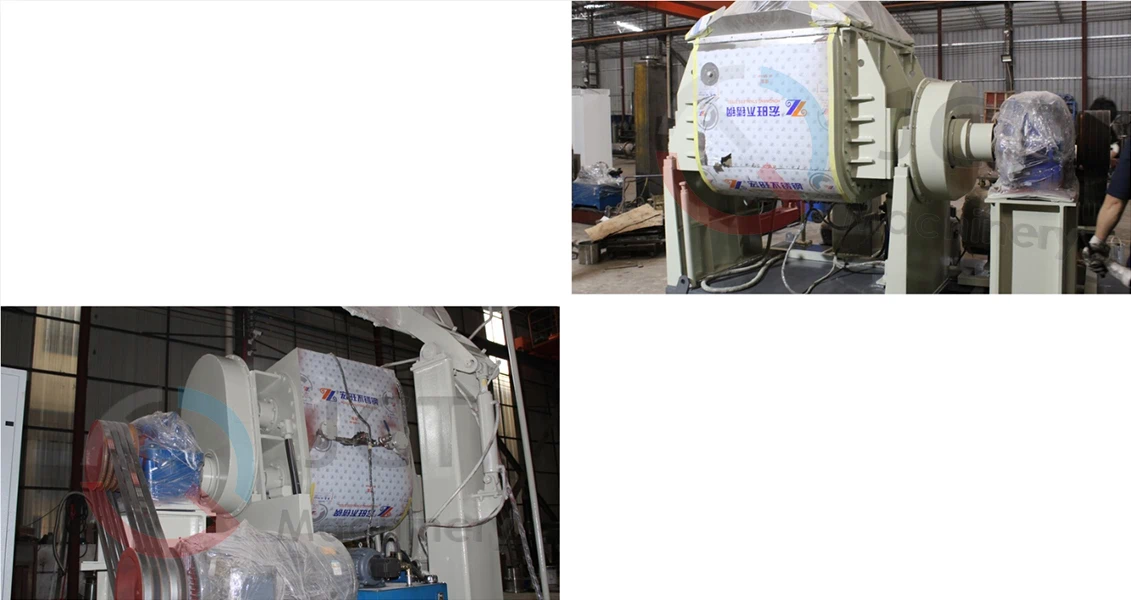

| Unloading Method | Hydraulic tilting cylinder discharge, tilting cylinder tilt angle: ≥ 95° |
| Cylinder head locking mode | Pneumatic locking |
| Sealing | 8mm-SS304, fluorosilicate strip seal |
| Agitator shaft seal | Combined sealing structure: stainless steel sleeve + PTFE V-ring + PTFE sealing root. 4 sets |
| Electronic cabinet |
1) Floor-standing control cabinet, power distribution ammeter and voltmeter, etc. 2) Main motor control, including forward and reverse control; 3) Hydraulic cover opening and hydraulic tilting cylinder control; 4) Temperature display and visual light control, etc. |
