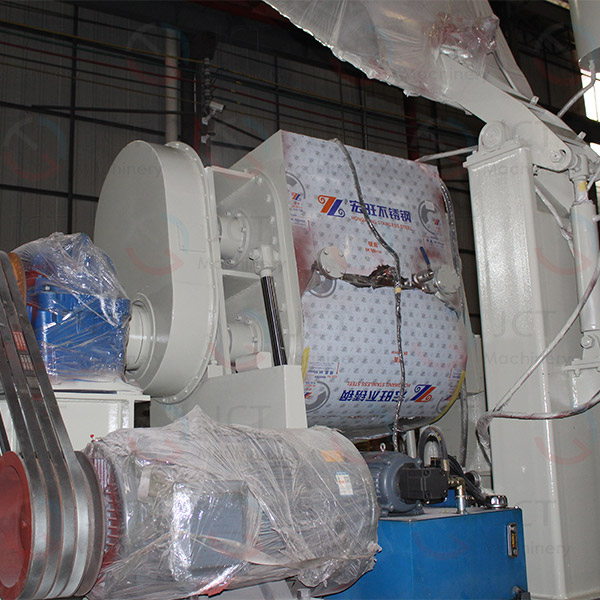

| Equipment colume | 5-10000L |
| Working volume | 60%-70% |
| Gear reducer | Hardened gear reducer, 1 set |
| Inverter | Heavy-duty inverter, 1 set |
| Shaft drive | These two stirring shafts are driven by a double-gear mechanism with a gear tank |
| Heating medium | External circulation heating is achieved through hot oil circulation |

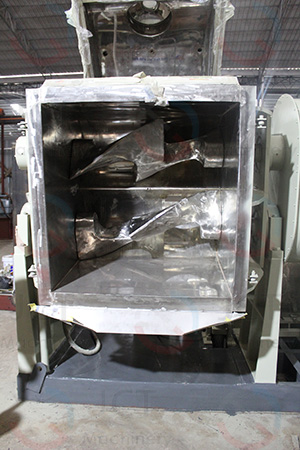

| Cylinder structure | W-shaped cylinder body, blades are polished with high precision to prevent sticking and provide excellent shearing and kneading effects |
| Inner cylinder | 16mm SS304 stainless steel plate, high-precision polished |
| Jacket | 14mm Q235-B carbon steel plate with a diversion reinforcement plate |
| Side plates | 35mm Q235-B carbon steel plate + 6mm SS304 lining plate, high-precision polished |
| Agitator blades | Made of integral cast steel, coated with 6mm thick SS304 stainless steel, and finely polished for high precision. 2 sets |
| Clearance between blades and cylinder | 3-6mm |
| Clearance between blades and side plates | 3-4mm |
| Mixing Speed | Front Blade: Rear Blade = 0~48/32 RPM, Variable Frequency Control |
| Lid (Open) | Hydraulic lid opening device, equipped with a hydraulic system and hydraulic station |

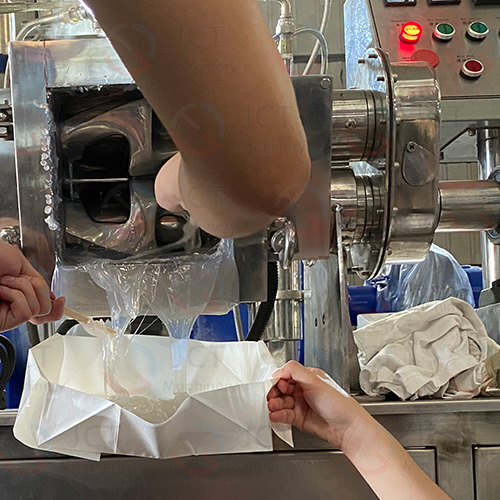

| Unloading Method | Hydraulic tilting cylinder discharge, tilting cylinder tilt angle: ≥ 95° |
| Cylinder head locking mode | Pneumatic locking |
| Sealing | 8mm-SS304, fluorosilicate strip seal |
| Agitator shaft seal | Combined sealing structure: stainless steel sleeve + PTFE V-ring + PTFE sealing root. 4 sets |
| Electronic cabinet |
1) Floor-standing control cabinet, power distribution ammeter and voltmeter, etc. 2) Main motor control, including forward and reverse control; 3) Hydraulic cover opening and hydraulic tilting cylinder control; 4) Temperature display and visual light control, etc. |
** Hydraulic tilting sigma mixer can be designed according to customers' actual needs.
