In the field of industrial mixing and blending, ordinary mixers (such as dispersers and paddle mixers) can easily handle liquids or low-viscosity fluids that are encountered in daily life. However, when the viscosity of the material reaches tens of thousands or even millions of centipoises (cP), and it exhibits a dough-like, highly elastic plastic colloid, or even a near-solid state, ordinary equipment will face the predicament of "not being able to turn," "uneven mixing," or "shaft seal leakage."
This is where high-viscosity mixers come in. So, is vertical kneader a type of high-viscosity mixer?
The answer is: Yes. Vertical kneader is not only high-viscosity mixer, but also specialized high-end mixing equipment designed for "ultra-high viscosity, high purity, and extreme process conditions."
Why is the vertical kneader the "ace" for high-viscosity mixing?
Conventional mixers rely on "flow" to mix materials, while vertical kneaders rely on "powerful shearing and folding."
Vertical kneader is specifically designed for extreme materials, and its core advantages lie in:

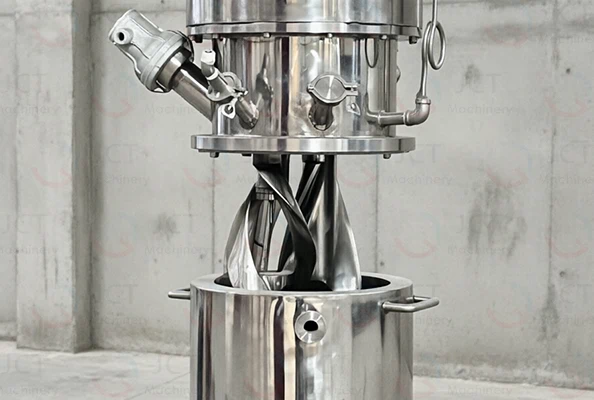

- Superior Shearing Force: Utilizing specially designed kneading blades (such as interlocking blades), it intensely stretches, compresses, shears, and folds materials within extremely small gaps, forcibly breaking up molecular aggregates.

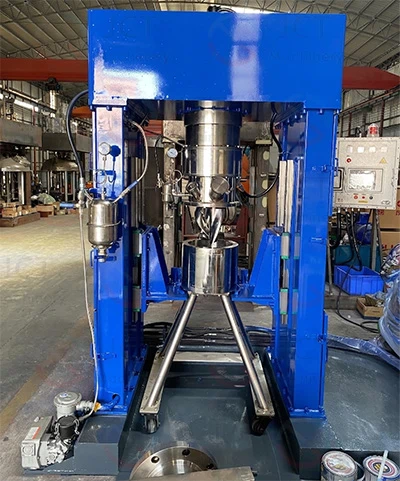

- High Torque Drive System: Equipped with a high-power motor and a high-reduction-ratio gearbox, it outputs surging torque, specifically designed to handle stubborn materials with high resistance and high viscosity.
Compared to traditional equipment, what are the core technological advantages of vertical kneader?

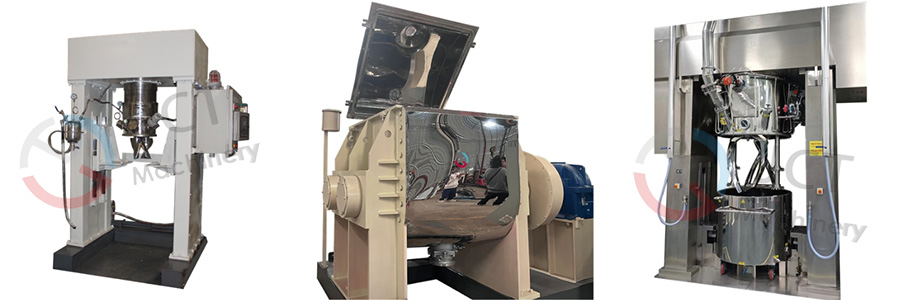

| Vertical Kneader | Sigma Blade Mixer | Double Planetary Mixer | |
| Sealing Performance | The shaft seal is located above the material and does not come into contact with it, completely eliminating leakage and contamination | The shaft seal is easily worn and contaminated due to prolonged immersion in the material | The planetary gearbox provides a good seal, but its shear force is slightly insufficient at extremely high viscosity conditions |
| Discharge and Cleaning | The mixing paddle can be raised and lowered as a whole, and the mixing tank can discharge from the bottom, eliminating dead corners and minimizing residue | There are many dead corners at the bottom, making discharge and cleaning more difficult | Discharge is relatively convenient, but it cannot form a strong kneading effect when dealing with lumpy/elastic materials |
| Vacuum Maintenance | High vacuum can be maintained to meet the requirements of dehydration and degassing processes | Vacuum can be maintained | Vacuum can be maintained |
| Applicable Viscosities | Extremely high. Specifically designed for handling highly elastic and plastic materials with ultra-high viscosity and a solid-like block-like form | Higher viscosity | Medium-high viscosity. Prone to "pole climbing" when dealing with ultra-high viscosity elastomers |
Vertical kneader successfully combines the excellent sealing performance of double planetary mixer with the high torque shear force of sigma blade mixer, making it the preferred choice for high-precision industries.
Typical Application Areas of Vertical Kneader
Because of its superior sealing, high vacuum retention capabilities, and powerful mixing power, vertical kneader is widely used in the following industries with extremely stringent process requirements:
- Aerospace and Defense: Mixing of high-risk, high-viscosity materials such as solid rocket propellants and explosives (vertical structure avoids the safety hazards of frictional heat generation).
- New Materials and High-End Chemicals: High-end electronic silicone, thermally conductive silicone, heavy-duty anti-corrosion coatings.
- New Energy: High-solids-content battery slurries, special ceramic materials.
- Pharmaceuticals and Food: Dental filling materials, high-viscosity ointments, special polymers.
How to choose the right high-viscosity mixing equipment?
When choosing mixing equipment, it's important to consider not only viscosity but also purity requirements, process environment (whether vacuum, heating/cooling are needed), and cleaning frequency. If you are processing ultra-high viscosity materials and have strict requirements for product purity, absence of metal contamination, and vacuum degassing, a vertical kneader is undoubtedly a more cost-effective option.
Contact our technical engineers for free material assessment and customized mixing solutions!
