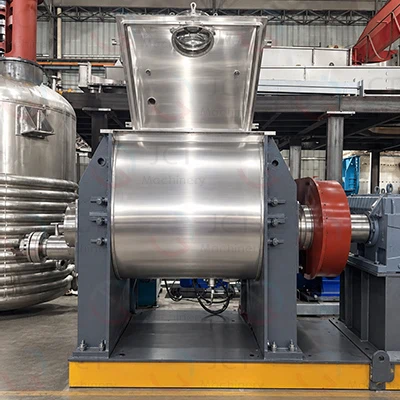

JCT Screw Discharge Sigma Mixer Enables Continuous Discharge Of High-viscosity Materials

For plants producing adhesives, sealants, silicone rubber or composite compounds, mixing is only half the battle. The other half is getting the finished batch out of the kneading chamber—and that is exactly where most high-viscosity production lines lose time, material and consistency.

Addressing this bottleneck, JCT Machinery's screw discharge sigma mixer replaces manual handling and tilting discharge with a continuous, stable and controllable extrusion screw. The result is a machine built for continuous production and automated lines, rather than one that interrupts them.

1. Why discharge decides the efficiency of the whole line

Materials handled by a sigma mixer are typically high-viscosity, semi-solid or paste-like. At those viscosities, tilting discharge is rarely complete: residue clings to the blades and cylinder walls, batch-to-batch consistency suffers, and the workshop pays for it in lost material and extra cleaning time.

A side-mounted extrusion screw changes that logic. Instead of relying on gravity and tilting angle, the screw positively conveys the compound out of the chamber—emptying the mixer more completely and delivering material at a rate that downstream equipment can actually keep up with.

2. How the JCT screw discharge sigma mixer works

At the core of the machine is a pair of double ∑-shaped blades driven through a high-torque reduction system, working together with a dedicated extrusion screw. Without damaging the material structure, this combination delivers four things at once:

• Uniform mixing across the full batch
• Complete plasticization of the compound
• Stable, controllable extrusion
• Straightforward integration with downstream equipment

3. Verified on the 2000L model: what the specification delivers

Take the 2000L screw discharge sigma mixer as a reference point. Its 2,200L full volume, W-shaped cylinder with a 12mm SS304/316 inner wall, and 8mm heating jacket fitted with flow-strengthening plates are designed for repeatable thermal and mixing performance.

• Mixing speed: fast / slow paddle ≈ 38 / 25 rpm
• Discharge screw: DN273, 30kW explosion-proof motor with reducer, 0–130 rpm
• Main drive: 55kW-6 explosion-proof motor with helical gear reducer (55kW + 30kW inverters)
• Vacuum degree: ≥ −0.095 MPa
• Heating: jacket heating with external circulation, room temperature to 280°C
• Structure: hydraulic cover lifting with an opening angle ≤ 75°, DN400 quick-opening feed port and DN100 sight glass

The shaft is machined to a streamlined ∑ profile with a cast steel body faced in SS304/316, a ground shaft seal and a polished blade surface; sealing uses composite PTFE packing. Every detail serves one goal—consistent mixing batch after batch, and clean release of the material when the batch is finished.

4. Where screw discharge pays off

The configuration is most valuable where viscosity is high and production is continuous:

• Adhesive and sealant production
• Composite materials (BMC, magnetic materials)
• Fine chemicals
• Food and medical materials
• New energy and electronic materials

5. From a single machine to a complete production line

JCT manufactures key components in-house, which keeps impeller and cylinder precision under direct control instead of depending on outside suppliers. Because model selection depends on the material and the process rather than on a catalogue number, the company provides operating-condition assessment, selection advice and sample testing—including a 5L laboratory sigma mixer trial at the factory, with equipment delivered only after the customer confirms the results.

Sigma mixers range from 5L to 3000L with multiple discharge options. Selected machines can ship within 7 days, and expedited production is available on request. ODM, OEM and non-standard customization are supported, as are turnkey projects running from a single machine to a complete production line.

6. Talk to us about your material

JCT is not merely an equipment manufacturer; we are your technical partner for high-viscosity material mixing and complete plant construction.
