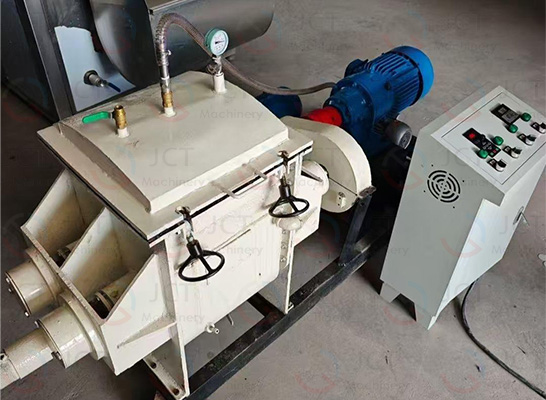

Sigma blade mixer is widely utilized for the kneading and mixing of raw rubber, compounded rubber, liquid silicone rubber, molding compounds and sealants. Featuring a unique ∑-shaped blade design, it generate intenses shear forces and folding effects under high-viscosity conditions, ensuring the perfect fusion of fillers and polymers.
Key Advantages of Silicone Rubber Sigma Blade Mixer
- Vacuum degassing system: Achieves an ultimate vacuum level of -0.098MPa, effectively eliminating air bubbles and low-molecular-weight volatiles from the compound to enhance the transparency and electrical insulation properties of the finished product.
- Precise temperature control: Supports circulation heaitng via thermal oil or water cooling, offering temperature control accuracy of up to ±1℃ to prevent thermal degradation or premature vulcanization of silicone rubber during the kneading process.
- Zero-contamination sealing technology: Employs a combination of multiple mechanical seals and Teflon packing to completely prevent lubricant infiltration into the compound, thereby meeting the stringent purity requirements for medical-grade and electronic-grade silicone.
- High-efficiency ∑-shaped blades: Features a differential speed ratio optimized through fluid dynamics to eliminate mixing dead zones, shortening the mixing cycle by 20-30% compared to traditional equipment.
Silicone Rubber Sigma Blade Mixer Parameters
| Model |
Volume |
Main Motor Power |
Extrusion Power |
| 50L |
60-70% |
7.5kW |
3kW |
| 100L |
15kW |
5.5kW |
| 300L |
37kW |
11kW |
| 500L |
55kW |
15kW |

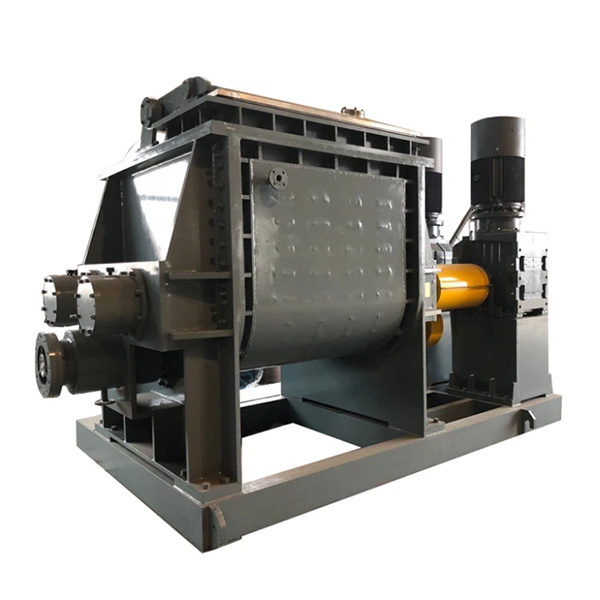

Silicone Rubber Sigma Blade Mixer Design Highlights

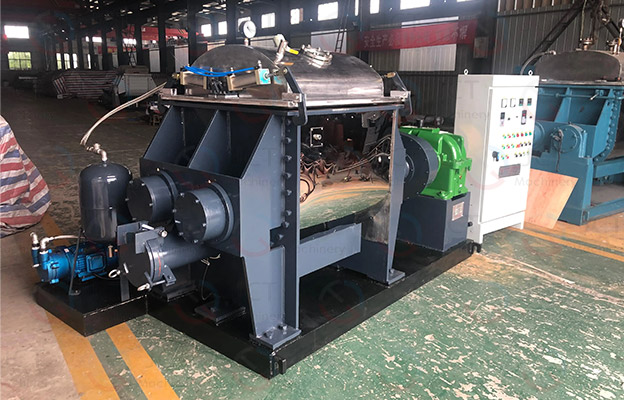

- Screw extrusion: offers flexible discharge solutions tailored to silicone rubbers of varying viscosities. The screw-extrusion model can be directly integrated with granulators or rubber strainers.
- Wear-resistant materials: All components in contact with the material are constructed from SS304/316. The surfaces undergo mirror polishing to ensure high hardness, corrosion resistance, and ease of cleaning.
- Intelligent PLC control: Enables real-time monitoring of rotation speed, temperature, current and vacuum levels. Supports one-touch recall of multiple stored recipes, as well as encrypted storage of recipe data.
Applications of Silicone Rubber Sigma Blade Mixer
- Solid silicone rubber (HTV): Compounding and coloring of rubber compounds across various hardness levels.
- Liquid silicone rubber (LSR): Medical components, baby products, electronic encapsulants.
- Room temperature vulcanizing (RTV) silicone rubber: Construction sealant, mold-making compounds.
Why choose us?
Experience: With 20 years of deep expertise in the silicone rubber equipment industry, we have served numerous leading domestic and international enterprises. We offer free equipment trials using your own raw materials.
Customization: We provide a comprehensive range of customized solutions, spanning from laboratory-scale units (5L) to large-scale industrial systems (5000L).
Turnkey project: Beyond supplying complete equipment sets, we also provide formulation guidance, production line layout planning, installation tutorials, and operational instruction.
After-sales support: We offer 24-hour online technical support, a 12-month warranty on all equipment, and maintain a substantial inventory of spare parts and consumables.
Contact an engineer to schedule a free trial of silicone rubber sigma blade mixer: +86-181 3837 3963 (Whatsapp, Wechat), sigmamixer@outlook.com.
